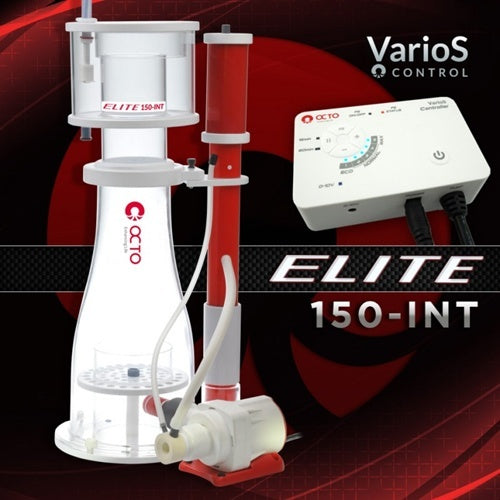

Reef Octopus 150 Elite In-Sump Skimmer w/ DC Pump



Footprint: 11.4″ x 10.4″ | Reaction Chamber: 6″ Super Cone | Height: 20.6″

Powered by: Reef Octopus 24V VarioS-2S Controllable Pinwheel Pump

Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller





HEAVY-------------100gallons
MEDIUM----------160gallons
LIGHT--------------210gallons



Safe and Efficient 24V Power

Turbulence Reducing Super Cone Body

Solid Cast Acrylic & Machined PVC Construction

Vented Output Valve with Adjustment Dial

“Twist & Lift” Collection Cup

Disassembles for Easy Cleaning & Maintenance

Efficient, Quiet and Controllable VarioS-2S pump

5 Controllable Energy Saving Power Settings

Detachable Controller with Waterproof Union

Safety Float Switch

0-10v Input for 3rd Party Controller

Integrated Memory

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.





The new and innovative Reef Octopus ELITE 150-INT in-sump protein skimmer supplies powerful filtration for aquariums up to 210 gallons. The Reef Octopus ELITE 150-INT is constructed of high-quality cast acrylic and PVC that disassembles completely for cleaning. Its unique wine glass body naturally stabilizes and concentrates the organic rich foam as it rises.



The Elite 150int is equipped with a variable speed Reef Octopus VarioS-2S pinwheel pump with integrated memory controller. This skimmer features a unique  “twist and lift” collection cup to make removal and cleaning a simple task, an easy to use vented wedge valve provides precise control, and an underwater outflow for quiet operation.



In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:



A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.

And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.



The pump and controller are connected via a waterproof 3-conductor union.  The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.





Super Cone Body: 6 to 3.5in

Footprint: 11.4in x 10.4in

Neck Size:   4.7in

Total Height: 20.6in

Output Size: 40mm / 1.25in



Recommended Sump

Water Height: 6 - 8in



Reef Octopus VarioS-2S Controllable Pinwheel Pump

Power Consumption: 15-25watts

Voltage: DC 24V

Air Draw: 900 lph / 31.5 SCFH*
