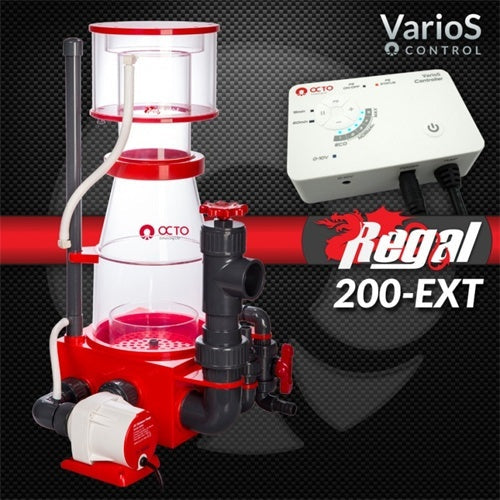

Reef Octopus Regal 200-EXT 8" External Skimmer
Reef Octopus Regal 200-EXT 8" External Skimmer
Regular price
$975.96
Regular price
Sale price
$975.96
Unit price
/
per
Regal 200EXT Recirculating Protein Skimmer
Footprint: 15.7″ x 13.8″ | Reaction Chamber: 8″ | Height: 25.4″
Powered by: Reef Octopus 24V VarioS-4S Controllable Recirculating Skimmer Pump
Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller
BIOLOAD HANDLING
HEAVY ------- 400 gallons
MEDIUM ----- 300 gallons
LIGHT --------- 200 gallons
MEDIUM ----- 300 gallons
LIGHT --------- 200 gallons
Small Footprint - Saves Sump Space
Safe and Efficient 24V Power
Solid Cast Acrylic Construction
High Performance VarioS Skimmer Pump
5 Controllable Energy Saving Power Settings
Detachable Controller with Waterproof Union
Safety Float Switch
0-10v Input for 3rd Party Controller
Integrated Memory
Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.
Skimmer Drains for Easy Cleaning
200-EXT ADVANCED CONTROL RECIRCULATING PROTEIN SKIMMER
The new and innovative Reef Octopus Regal 200-EXT recirculating protein skimmer supplies powerful filtration for aquariums up to 400 gallons where absolute control is a necessary. The Reef Octopus Regal 200-EXT is constructed of high-quality cast acrylic that disassembles completely for cleaning. Its hybrid conical body naturally stabilizes and concentrates the organic rich foam as it rises.
RODC Skimmer PumpThis Regal skimmer is quipped with a new generation Reef Octopus controllable Direct Current VarioS-4S pinwheel recirculating skimmer pump which are the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyist are alternating current "AC" pumps (the type of power that comes out of your wall outlet). Direct current pumps have several key advantages over traditional AC pumps. Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer. Now the user can have the skimmer process more or less water just by the push of a button!!!
REFINED CONTROL
In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:
A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.
And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!
The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.
The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.
TECHNICAL SPECS
Hybrid Body: 8in
Footprint: 15.7in x 13.8in
Neck Size: 5in
Total Height: 25.4in
Output Size: 50mm / 1.5in
Note: Requires Feed pump
Recommended feed rate of 1.5-2x system volume.
Suggested 600-1000gph
Pump Information
Reef Octopus VarioS-4S Pinwheel Pump
Power Consumption: 25-40watts
Voltage: DC 24V
Air Draw: 800-1500 lph / 28-52 SCFH*
Max Water Draw: 422gph
*Air and water results will vary depending on aquarium setup
