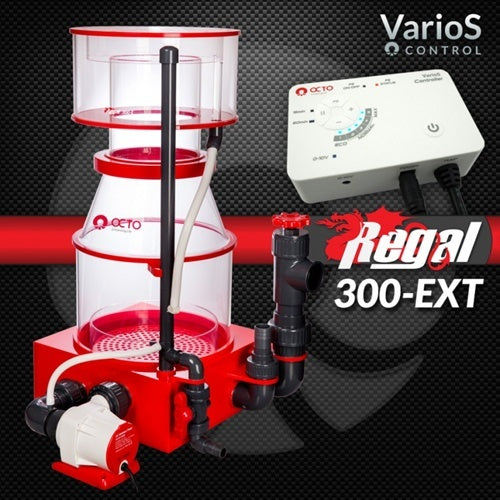

Reef Octopus Regal 300-EXT 12" External Skimmer



Footprint: 20″ x 17.5″ | Reaction Chamber: 12″ | Height: 28.4″

Powered by: Reef Octopus 36V VarioS Controllable Pinwheel Pump

Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller





HEAVY -----------500 gallons
MEDIUM ---------600 gallons
LIGHT ------------700 gallons



Small Footprint - Saves Sump Space

Safe and Efficient 36V Power

Solid Cast Acrylic Construction

High Performance VarioS Skimmer Pump

5 Controllable Energy Saving Power Settings

Detachable Controller with Waterproof Union

Safety Float Switch

0-10v Input for 3rd Party Controller

Integrated Memory

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.

Skimmer Drains for Easy Cleaning





The new and innovative Reef Octopus Regal 300-EXT recirculating protein skimmer supplies powerful filtration for aquariums up to 700 gallons where absolute control is a necessary. The Reef Octopus Regal 300-EXT is constructed of high-quality cast acrylic that disassembles completely for cleaning. Its hybrid conical body naturally stabilizes and concentrates the organic rich foam as it rises.



This Regal skimmer is quipped with a new generation Reef Octopus controllable Direct Current VarioS-6S pinwheel recirculating skimmer pump which are the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyist are alternating current "AC" pumps (the type of power that comes out of your wall outlet).  Direct current pumps have several key advantages over traditional AC pumps.  Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer.  Now the user can have the skimmer process more or less water just by the push of a button!!!



In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:



A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.

And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.



The pump and controller are connected via a waterproof 3-conductor union.  The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.





Body: 12in

Footprint: 20in x 17.5in

Neck Size: 7in

Total Height: 25.6in

Output Size: 50mm / 1.5in



Recommended feed rate of 1.5-2x system volume. Suggested 1200-1600gph

Reef Octopus VarioS-6S Controllable Pinwheel Pump

Power Consumption: 35-70watts

Voltage: DC 36V

Air Draw: 1200-2000 lph / 42-84 SCFH*

Max Water Draw: 740gph

*Air and water results will vary depending on aquarium setup
