Royal Exclusiv Dreambox Compact Cartridge Media Filter w/ Red Dragon X
Royal Exclusiv Dreambox Compact Cartridge Media Filter w/ Red Dragon X
Couldn't load pickup availability

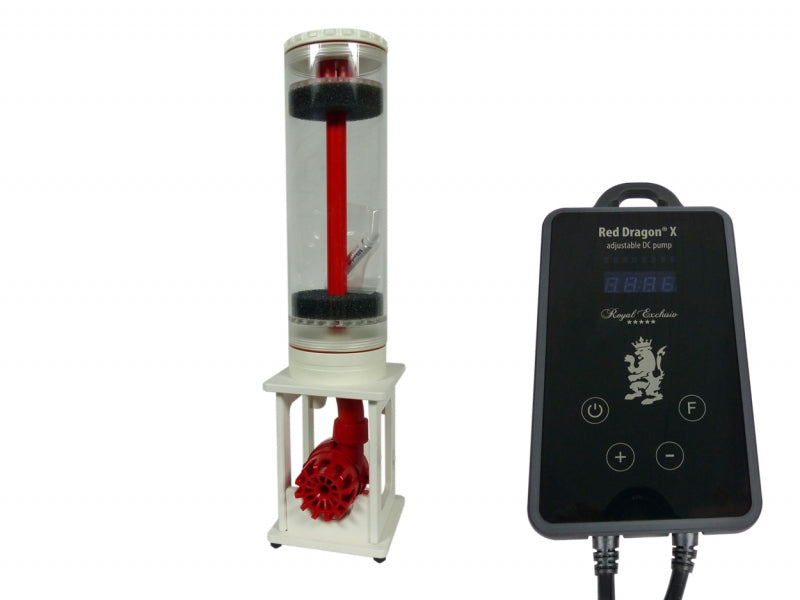

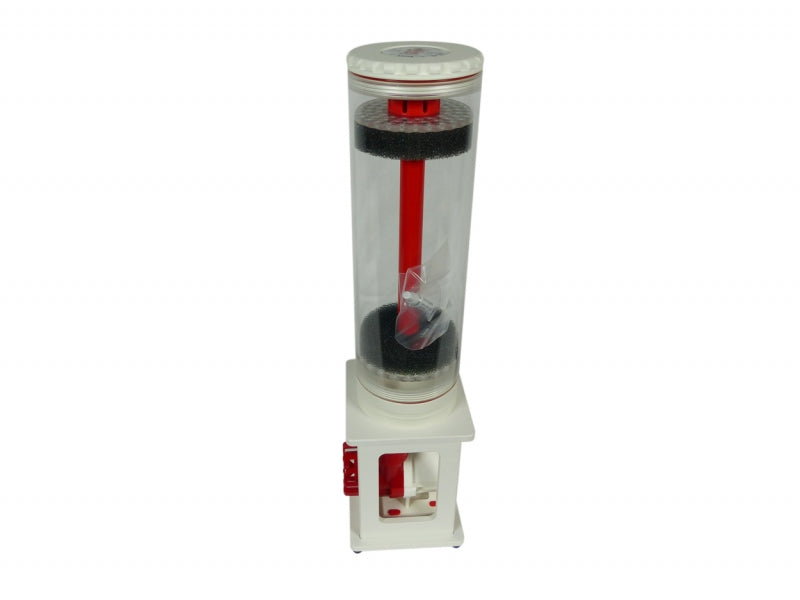

COMPACT Dreambox - media filter 3.0 - mit Red Dragon® X 40 Watt / 3m³
Cartridge filter 2.0 liter
Technical data:
Dimensions: Ø 100 mm (tube) // 100 mm (cup) 120 mm x 120 mm (podium) x ~ 495mm height
Volume: ~ 2.0 liters /// 1.8l (media)
With heavy bottom, completely disassemble possible, top and bottom threads.
Red Dragon® X 40 Watt / 3m³ complete decoupled with controller adjustable in 16 steps.
Media filter made of PVC an high quality acryl-glass / Plexiglas®
- including pipe breakthroughs
outer Ø 20mm - universal usable as media filter for differ medias
- high quality rigid PVC and Plexiglas® (plexiglass)
- 100% Made in Germany / assembly by hand
- 30 Years of experience in PVC filter and skimmer construction
The flow rates of the media-filter per hour (recommended):
100mm = 2.0l approx. 1000 - 1500 l/h
Example: 125mm TRIPLE Media-reactor/filter with a Red Dragon® Speedy 3 with 80W limited/controlled of 15W. Play Video!
The media filter is optimal for the use of RE-Carbon // aktive carbon.

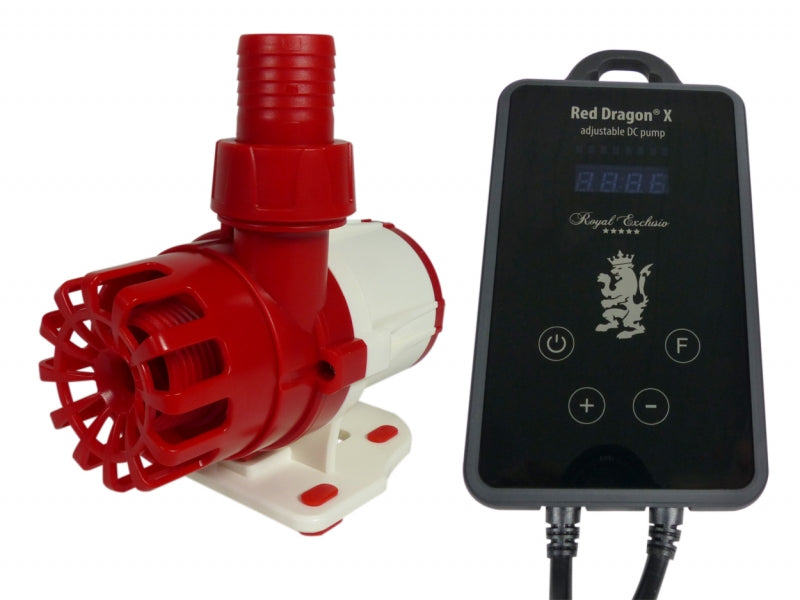

Red Dragon® X pump 40 Watt / 3m³ / 12V
Technical data Red Dragon® X pump 40 Watt 3,5 m³:
max. 40 Watt/h 3,75 mtr. pressure height
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 16-steps from ~ 7W up to 40W
Intake side 25 mm (0.75") - pressure side 25 mm (0.75")
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
